     xyztec Condor Sigma Multifunction Bond Tester


Performance and flexibility

The Condor Sigma is the most advanced bond tester on the market, combining the unique strengths of the Condor series with the latest technologies and innovations. Whether you need a dedicated or multipurpose bond tester, the Condor Sigma is the best choice featuring unparalleled 0.075% accuracy, the best ergonomics, highest throughput, maximum flexibility and the lowest cost of ownership.



Use existing tools and work holders

This system is designed to be compatible with the most commonly used work holders and tooling, that you may already have in stock. The compatibility modes ensure consistency in your measurement results across machines. Equipped with the most powerful intuitive software, operators can quickly learn to use the Condor Sigma alongside your existing equipment and procedures.

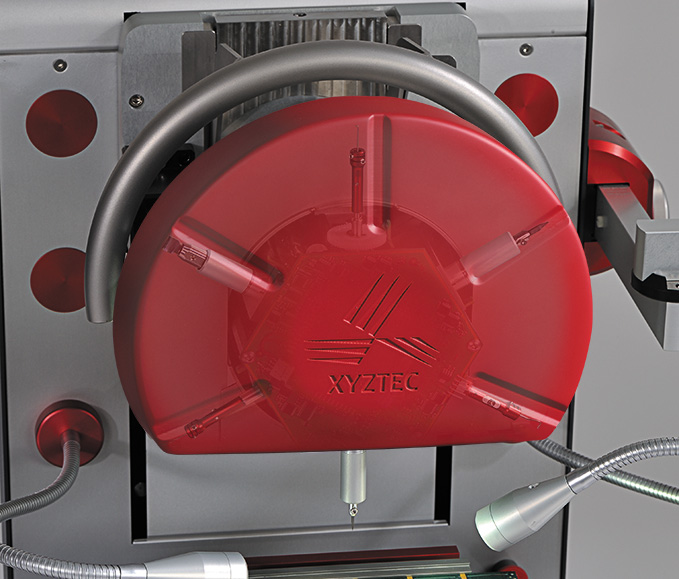

6 sensors RMU, up to 200Kg: changing cartridges manually no longer required

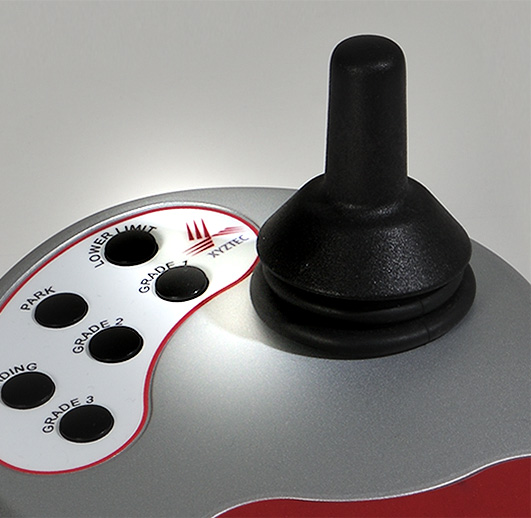

Ergonomic joysticks: full control at your finger tips

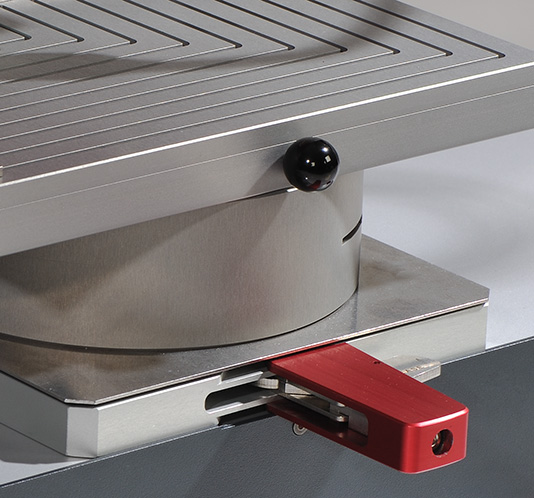

Quick change release: change work holders in seconds



Soft landing and high resolution

A wide variety of tests is possible using the Condor Sigma with forces ranging from less than 1 gf to 200 kgf. Digital temperature correction and the world’s highest resolution of 24 bits contribute to the most reliable and repeatable measurement results.




Modular and open design

All sensor modules are interchangeable and fit any single heads and the Revolving Measurement Unit. Fully calibrated and tested, each sensor module can be removed and replaced within a few minutes. The open frame design and large stroke for all three stages offer the capability to handle the widest range of sample sizes with little or no special tooling. High  accuracy quick release work holders and measurement units ensure rapid sample loading and production setup.


Built in image capture and automation camera

The standard configuration contains a perpendicular automation camera at a small offset from the test point with a choice of two magnifications and optical resolutions down to 1.5 μm. The Condor Sigma can be equipped with a maximum of three separate cameras mounted in different positions to offer the best range of imaging possibilities. For automation, fiducial mark recognition is available.




Put it to the test!

With 10+ years in house experience, xyztec takes bond testing to a new level with the Condor Sigma. It uses the best of established technology together with innovation to set the new standard. Its broad specifications ensure it has the capability to perform all commonly used industry tests as well as special and challenging applications.

Current users of bond test equipment will find that the Condor Sigma system will provide an easy transition from their existing process to the state of the art Condor Sigma platform. Performance is without a doubt best in class, but do not take our word for it. Try it for yourself, and put it to the test!



Download the xyztec Condor Sigma Brochure

Wire pull, fine wire Wire pull, heavy wire Ribbon pull

Shear, Gold ball        Shear, Wedge   Shear, Solder ball

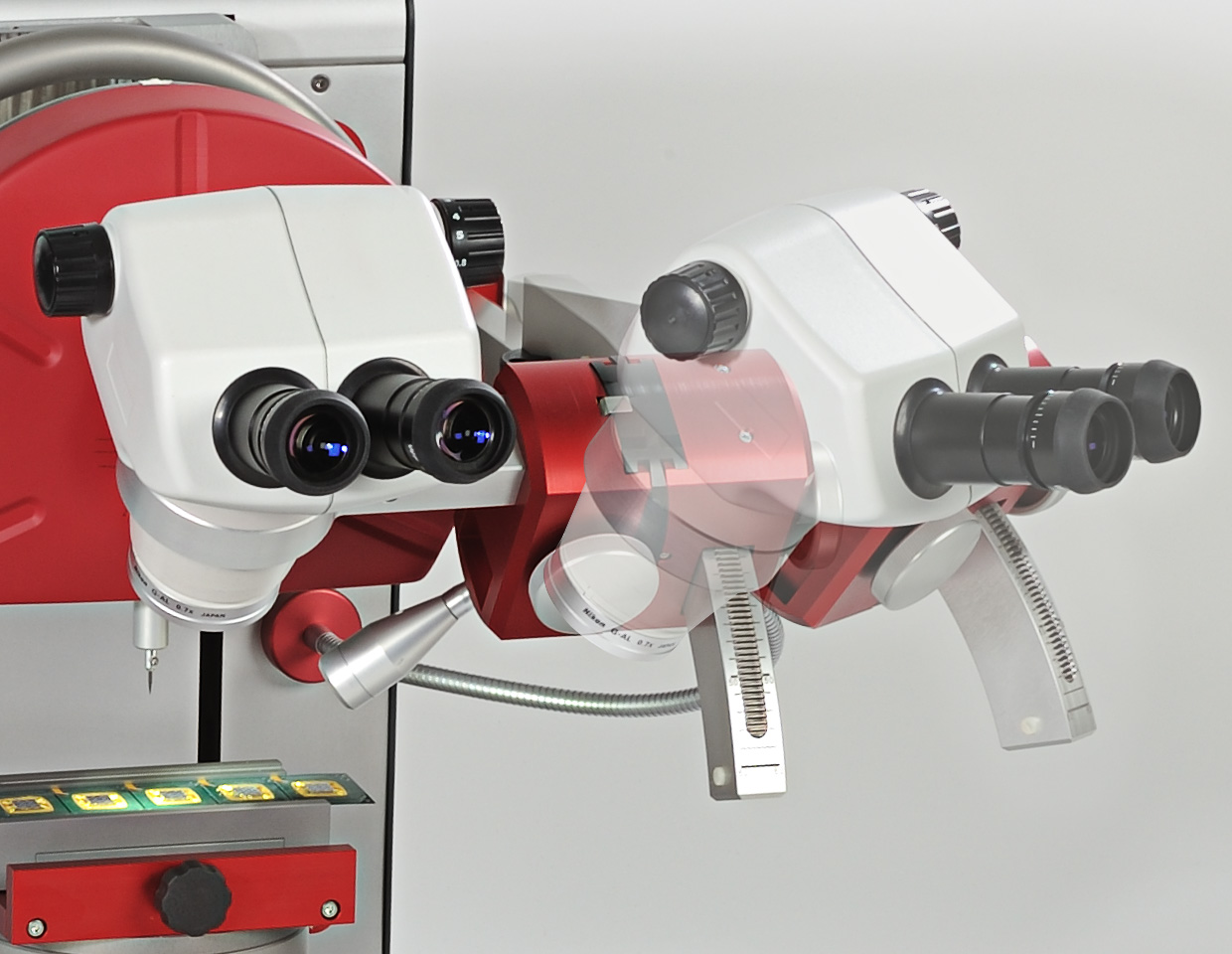

Easy sample loading: Retractable microscope

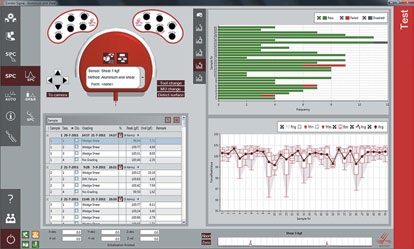

The Condor Sigma software supports various authorization levels.

Shown here is an easy to learn operator screen
